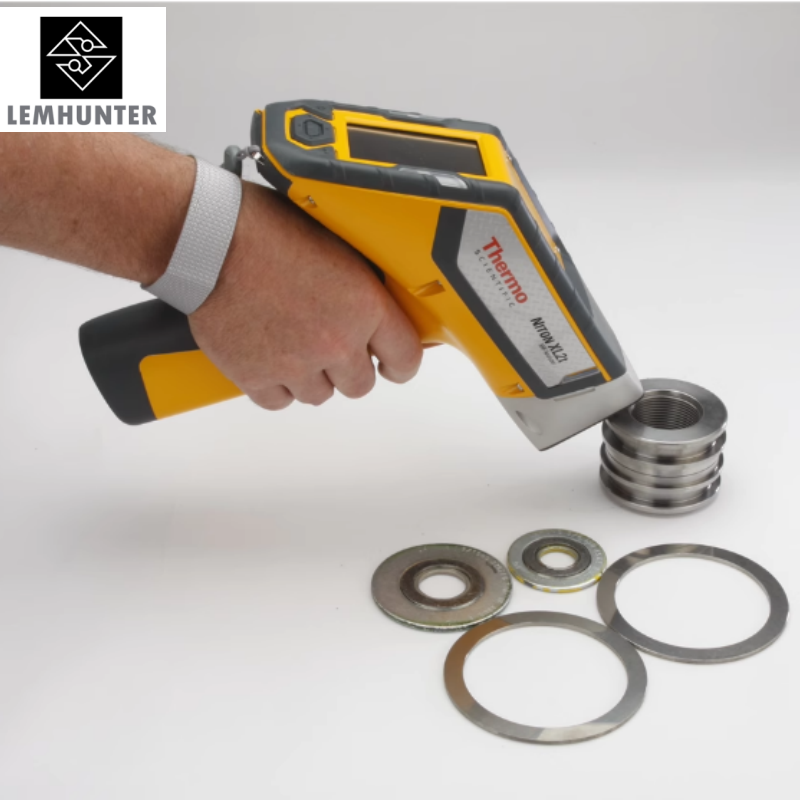

Niton Spectrometer XL2 800

1
Weight

1.53kg

2
Dimensions

256x275x100mm

3
Ambient temperature

-20℃～+ 50℃

4
Light pipe

High performance silver anode target

5
Detector

High performance semiconductor Si-PIN detector

6
Collimator

8mm

7
Electronic system

400 MHz ARM 11 CPU

300MHz dedicated DSP

80 MHz ASICS DSP special purpose signal processor

4096 channel MCA

64MB internal storage system/128MB user internal storage

8
Display

Fixed angle color touch screen display

9
★ Alloy composition detection range Sb, Sn, Pd, Ag, Mo, Nb, Zr, Se, Bi, Pb, Ta, Hf, Re, W, Zn, Cu, Ni, Co, Fe, Mn, Cr, V, Ti, Cd, Au, a total of 25 elements. Non-standard elements can be added based on customer needs.

10

★RoHS mode detection range Electronic alloy mode: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Br, Zr, Nb, Mo, Pd, Ag, Cd, In, Sn, Sb, Ba, Hf, Ta, W, Pt, Au, Hg, Pb, Bi Plastic mode: Cl, Ti, V, Cr, Fe, Ni, Cu, Zn, As, Se, Br, Cd, Sn,
Sb, Ba, Au, Hg, Pb, Bi

11
Data storage

Internally store 10,000 test data (including spectrum)

12
Data transmission

USB, Bluetooth

13
Security

User password protection

14
Mode
Common metal mode, fingerprint mode, etc.

15

Operation mode
One-touch trigger analysis

Computer online detection analysis

16

Data transmission measurement report
The instrument is equipped with a standard USB And wireless Bluetooth data interface, can directly customize the report format and EXCEL format to download the measurement data and its X-Ray spectrum. Use NITON's standard NDT computer software
kit to customize the analytical instrument, set permissions, generate reports and print analysis certificates.

17
On-site convenience
No requirements for the surface shape of the material, and gap measurement can be performed on the measured surface.

18
Data input
Dual operation mode of touch screen keyboard and physical keyboard
