High Performance Cut EDM Brass Wire CuZn40
description2
Product Description
● Reliable plain brass wire CuZn40 universally applicable on all current machines, especially for Japanese machines.
● 100% virgin raw material.
● Wire spools in P3, P5, P10, P15, DIN125, DIN160, DIN200, DIN250 are available.
● Outstanding straightness and clean surface finish ensure excellent Auto Wire Threading (AWT).
● 100% traceability for each spool of wire produced.
● Total in-house inspection guarantees product quality.
● High-Quality Material: Our 5kgs/spool 0.07mm 0.33mm CNC cutting metal wire is made from a high-grade brass alloy, ensuring optimal durability and performance in various applications, particularly in the EDM process, as requested by the user.
● Customizable Size: We offer customized sizes to meet specific user requirements, allowing for flexibility and precision in the production process.
● Soft Annealed Condition: The wire is supplied in a soft annealed condition, which enhances its malleability and ductility, making it easier to work with and reducing the risk of breakage.
● Certified and Reliable: Our product is certified to the ISO 9001 standard, ensuring that it meets international quality standards and providing users with peace of mind.
● Fast Delivery: We offer a quick delivery lead time of 7-20 days, allowing businesses to quickly meet their production needs and stay on schedule, as requested by the user.
Product Features
High Precision Machining
Extremely Fine Diameter Range: The product has a diameter between 0.07 and 0.33 mm, which is extremely fine and suitable for high-precision machining. These incredibly fine electrode wires can produce precision cutting and keep machining mistakes within a very small range when machining small parts, intricately formed molds, and workpieces that demand exceptionally high dimensional accuracy. For instance, in the production of electronic chips, the 0.07mm electrode wire may precisely complete the machining of minuscule circuit lines and connecting holes, guaranteeing the chip's functionality and quality.
Consistent size and composition: The electrode wire is composed of a brass alloy, which possesses high thermal and electrical conductivity. At the same time, it can continue to function consistently along its whole length because of its homogenous substance and great dimensional precision. This guarantees the quality and flatness of the processed surface by ensuring that the discharge energy distribution is uniform during processing and that there is neither localized overheating nor uneven wear. For instance, consistent material and size can guarantee the mold's surface polish and enhance the caliber of optical components while manufacturing precision optical component molds.
Efficient Cutting Performance
This electrode wire is specifically made for CNC (Computer Numerical Control) cutting, and it can perform flawlessly with CNC machinery to enable automated and highly accurate cutting operations. the CNC equipment can properly regulate the movement trajectory of the electrode wire and the parameters of the discharge, so as to optimize the processing efficiency and quality. CNC cutting, for instance, can achieve quick and precise processing in mass production, increase production efficiency, and lower production costs.
High-speed cutting is made possible by the electrode wire made of brass alloy, which has good electrical and thermal conductivity. This allows the discharge energy to be quickly conducted, causing the metal material to melt and evaporate quickly. This type of electrode wire can significantly reduce processing time and increase manufacturing efficiency when compared to conventional cutting techniques. For instance, high-speed cutting can be used in the mold manufacturing process to swiftly finish the molds' processing, reduce the molds' production cycle, and satisfy the market's increasing demand for molds.
description2
PRODUCT SPECIFICATIONS
Technical Specification
Product |
Core Material |
Coating Material |
Tensile Strength |
Conductivity |
Color |
LH Cut 1000 |
CuZn40 |
None |
1000N/mm2 |
19%IACS |
Golden |
LH Cut 500 |
CuZn40 |
None |
500N/mm2 |
22%IACS |
Golden |
Weight of different specifications：Unit: kg
| Ø (mm) | 0.07 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.33 |
| Ø (inch) | 0.003 | 0.004 | 0.006 | 0.008 | 0.01 | 0.012 | 0.014 |
| P3 | - | - | 3 | 3 | 3 | 3 | |
| P5 | - | - | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 |
| P10 | - | - | 10 | 10 | 10 | 10 | 10 |
| P15 | - | - | - | 20 | 20 | 20 | 20 |
| DIN125 | - | - | 3.5 | 3.5 | 3.5 | 3.5 | |
| DIN160 | - | - | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| DIN200 | - | - | - | 15/16 | 15/16 | 15/16 | 15/16 |
| DIN250 | 25 | 25 | 25 | 25 |
description2

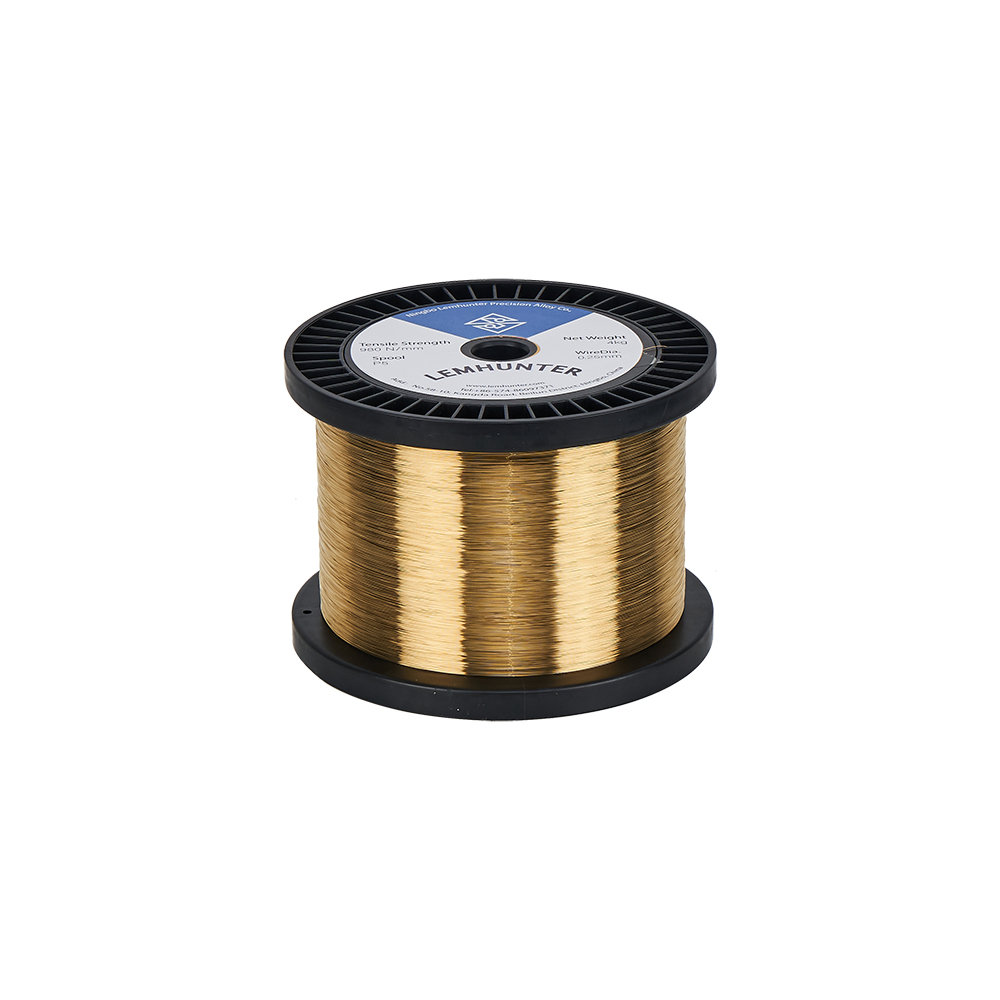

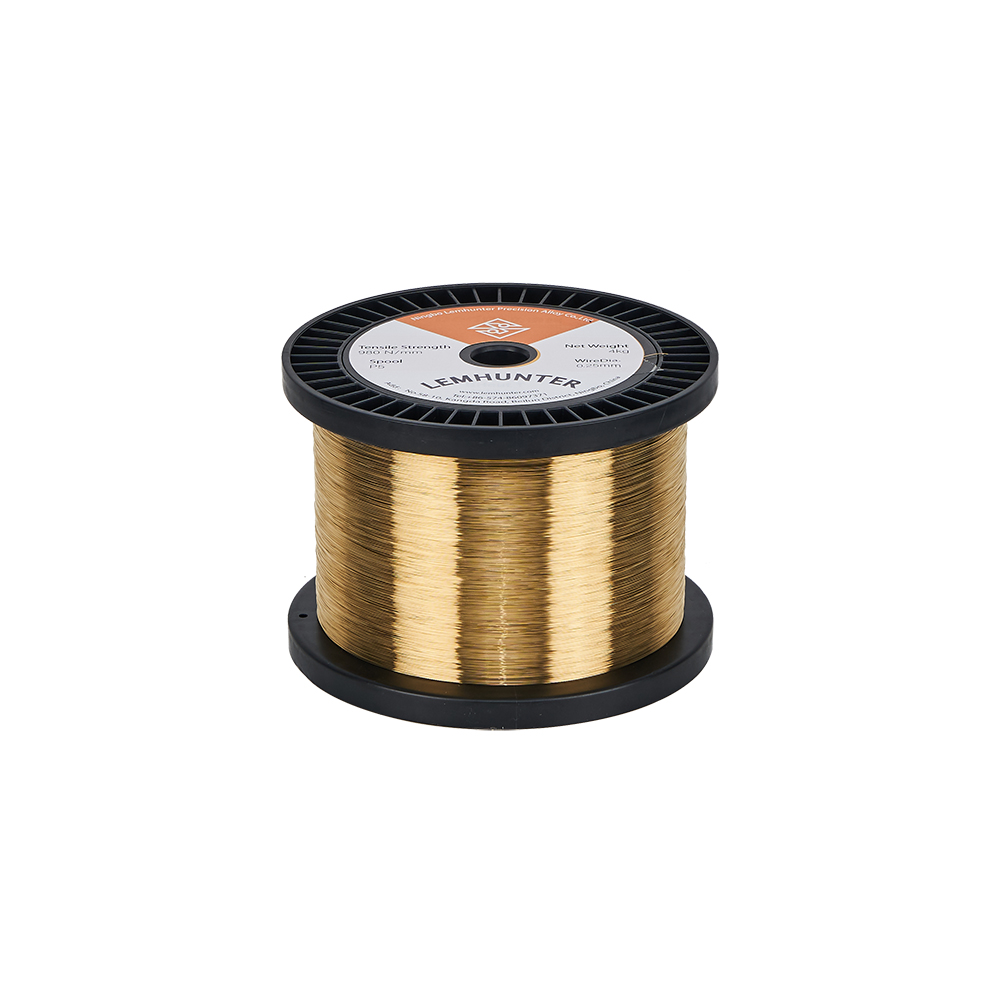

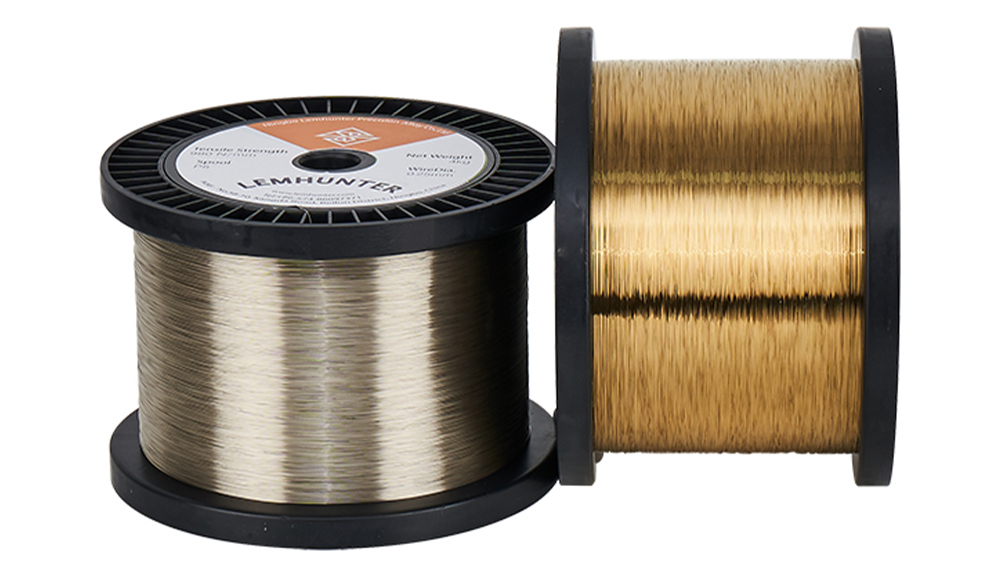

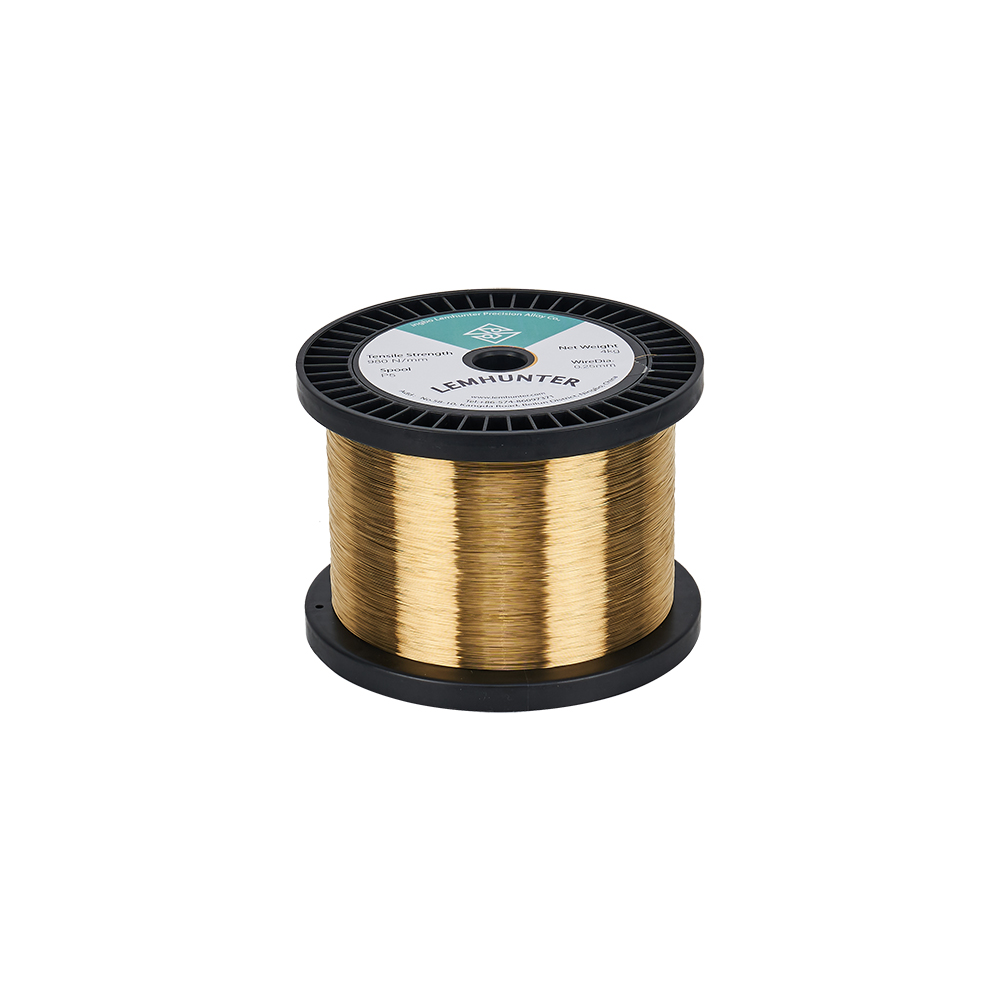

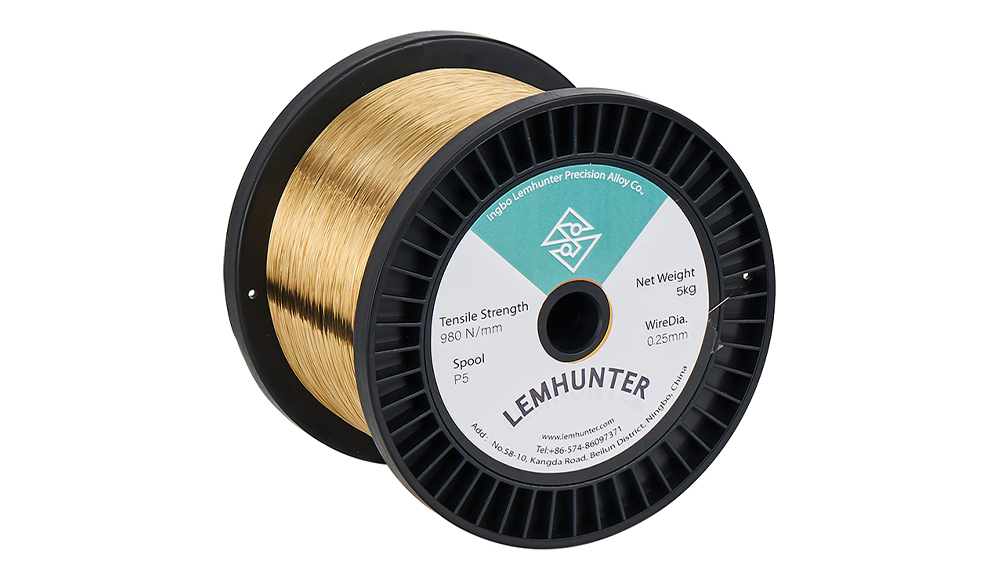

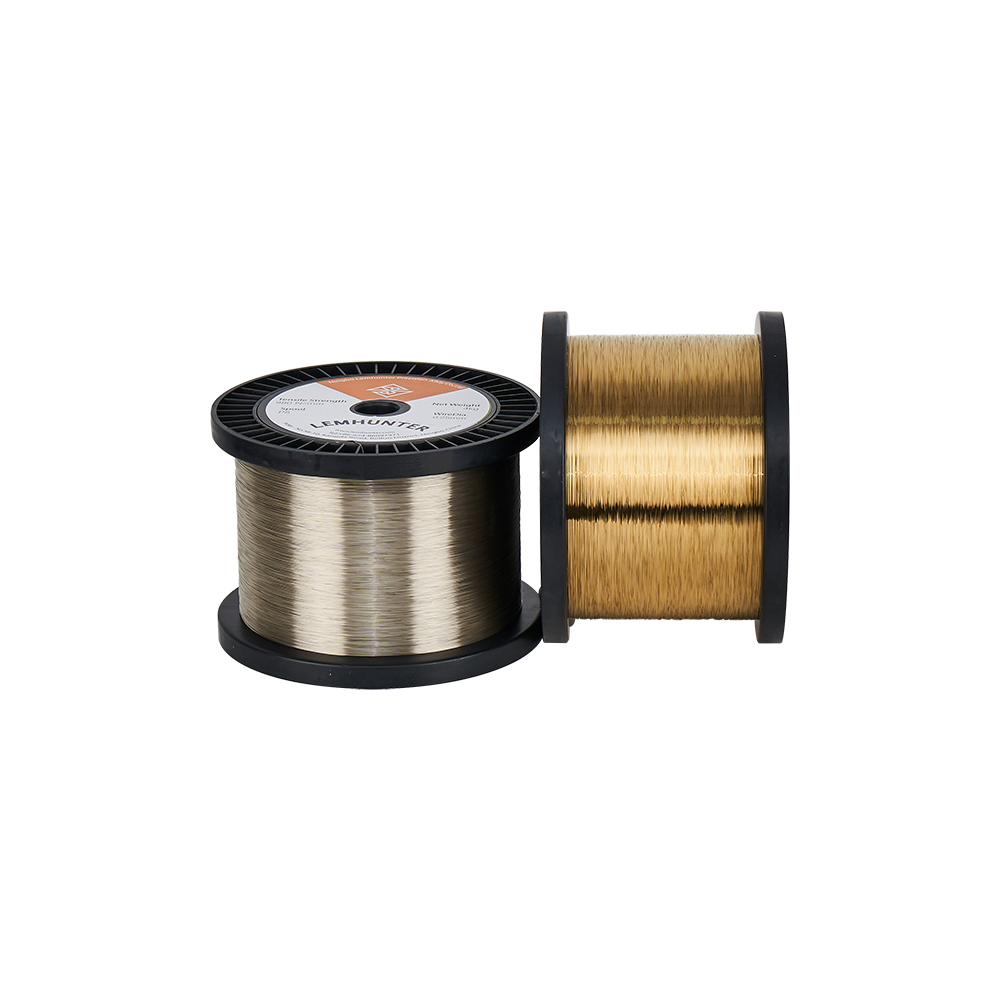

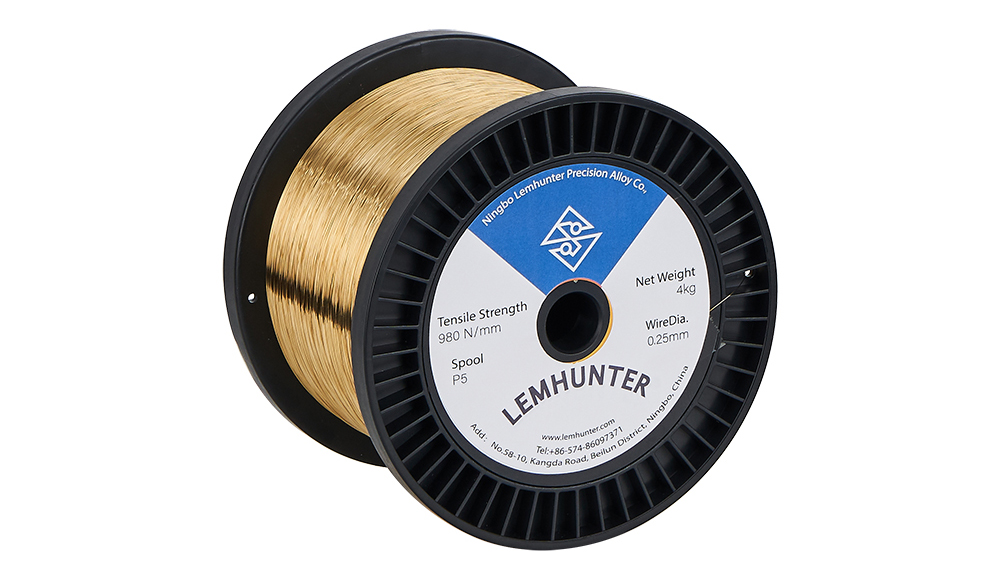

Product show
