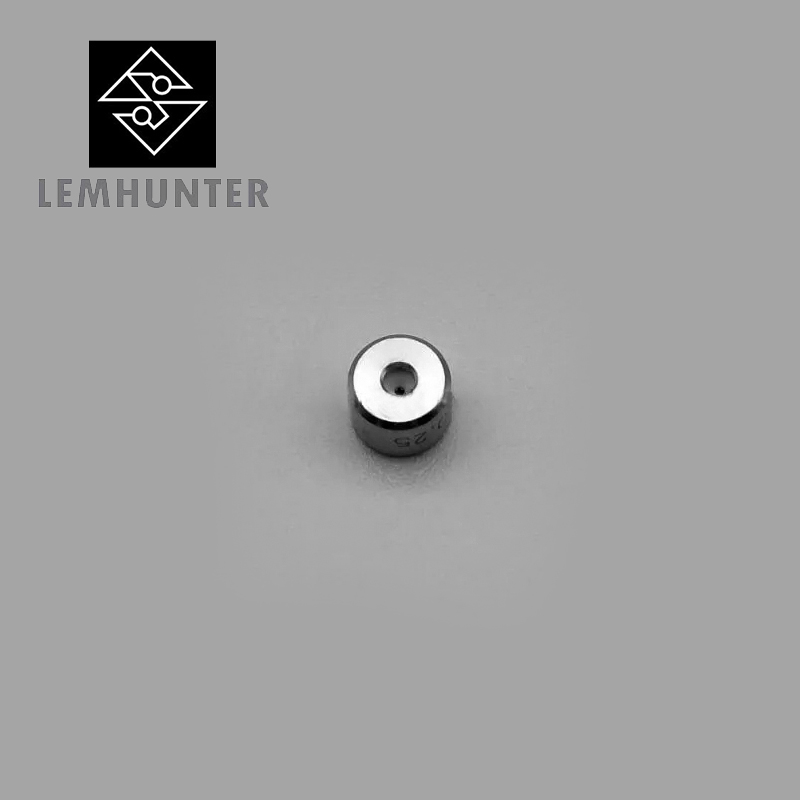

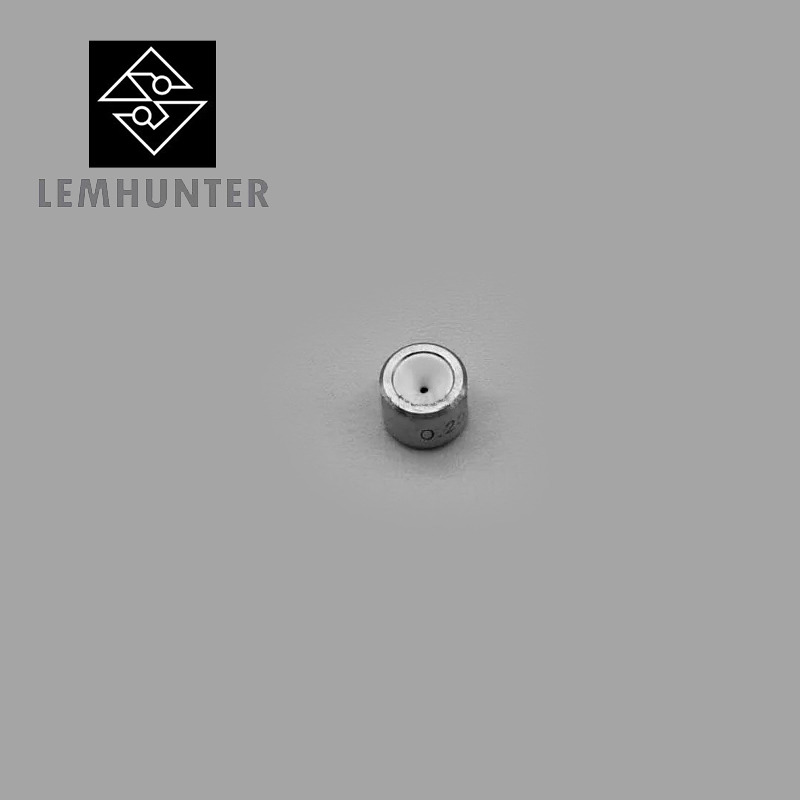

Charmilles Wire Cutting EDM Wire Diamond Die Guide Lower for EDM Wire 200431122 100430586 200432814

Position

Material

OEM code

OEM code

C101

Upper

Stainless

Ceramic

200431112(0.20)

100432511(0.25)

200432512(0.30)

C102

Lower

Stainless

Ceramic

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

C101

Upper

Ceramic

100431022 (0.10mm)
135011598 (0.15mm)
135011600 (0.20mm)
135011602 (0.25mm)
135011604 (0.30mm)

C102

Lower

Ceramic

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

C101

Upper

Black diamond

Stainless

200431112(0.20)

100432511(0.25)

200432512(0.30)

C102

Lower

Black diamond

Stainless

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

0.20mm

0.25mm

0.30mm


 ROBOFIL series
