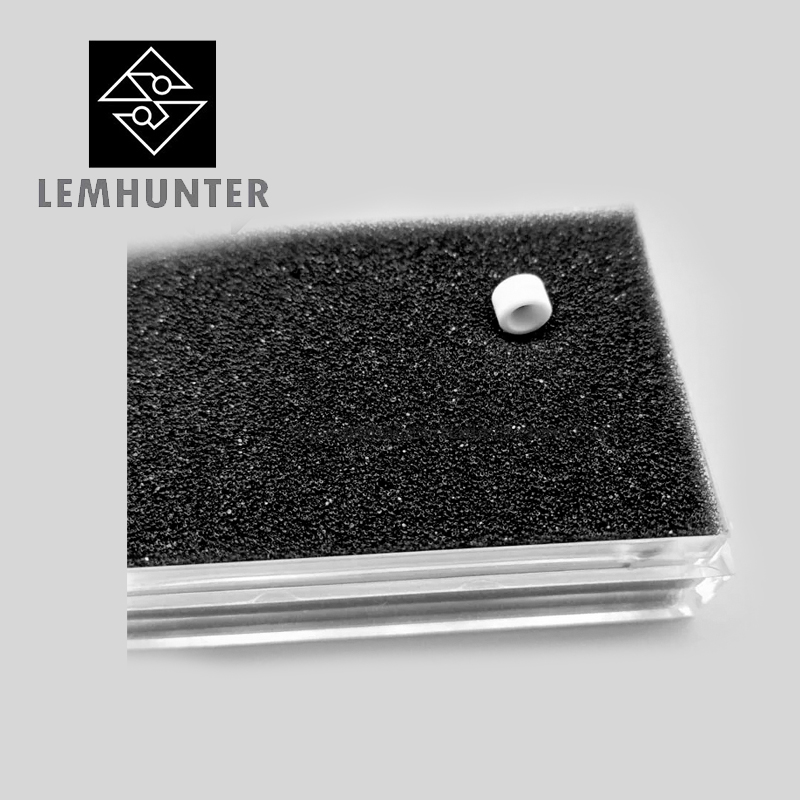

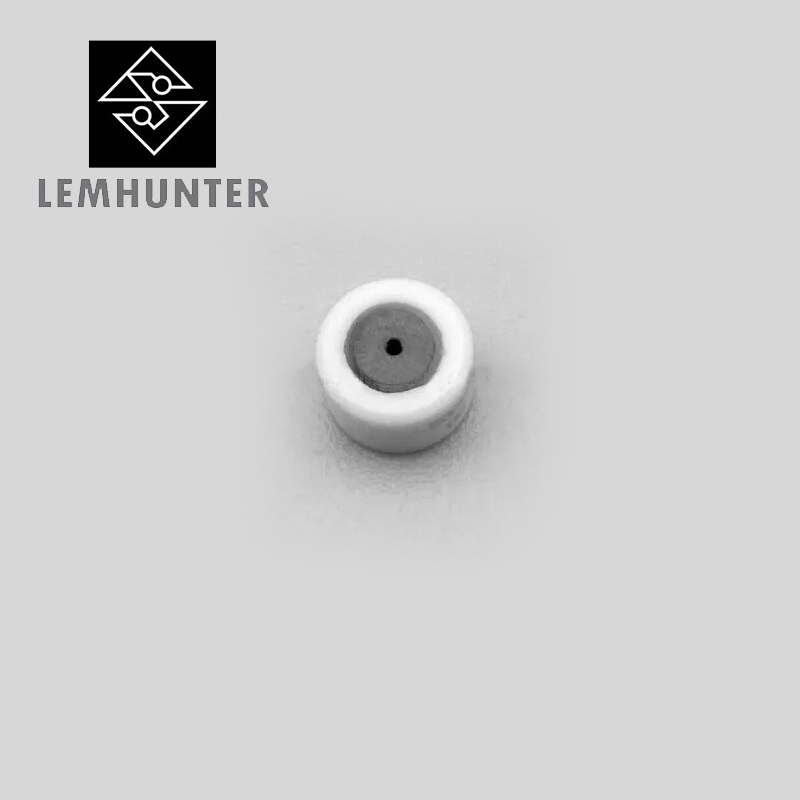

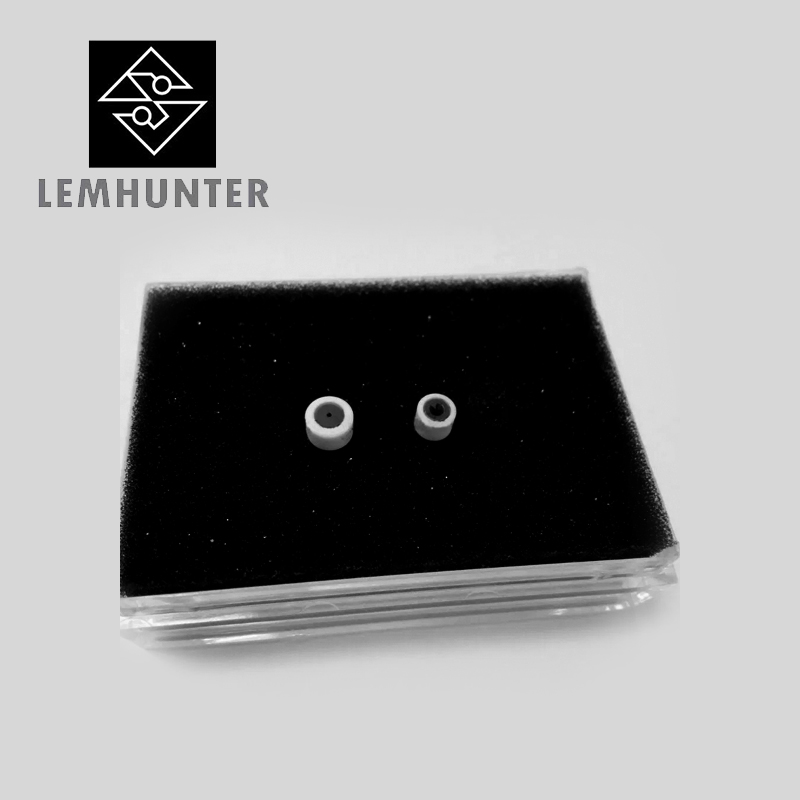

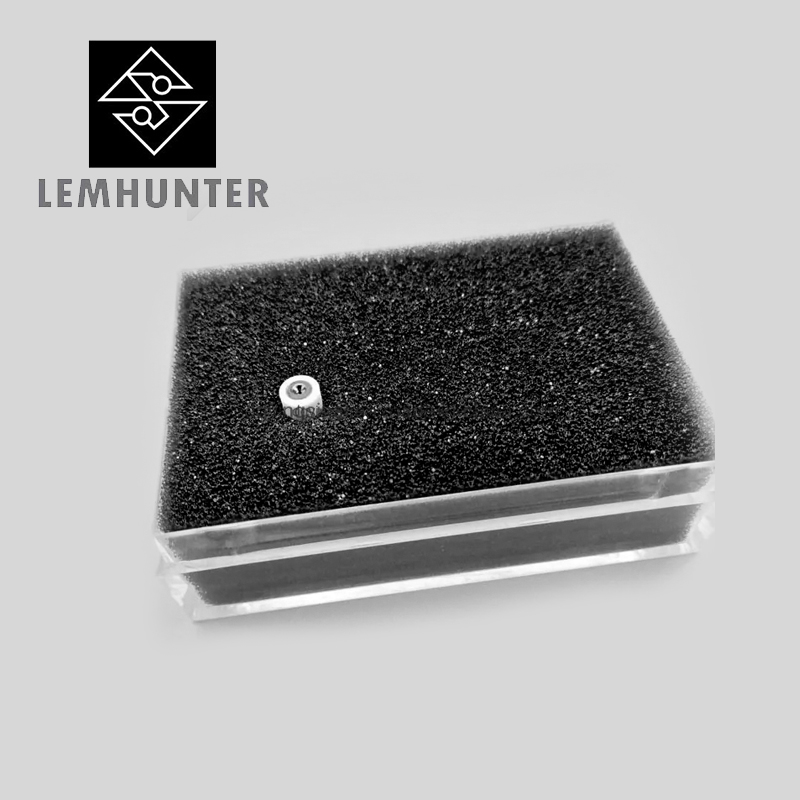

Charmilles EDM Consumables Ceramic Housing EDM Diamond Guide Upper for Wire EDM 135011600 135011602 135011604

Model no.

Position

Material

OEM code

C101

Upper

Stainless

Ceramic

200431112(0.20)

100432511(0.25)

200432512(0.30)

C102

Lower

Stainless

Ceramic

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

C101

Upper

Ceramic

100431022 (0.10mm)
135011598 (0.15mm)
135011600 (0.20mm)
135011602 (0.25mm)
135011604 (0.30mm)

C102

Lower

Ceramic

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

C101

Upper

Black diamond

Stainless

200431112(0.20)

100432511(0.25)

200432512(0.30)

C102

Lower

Black diamond

Stainless

100431027 (0.10mm)
200431124, 135011599 (0.15mm)
200431122, 135011601 (0.2mm)
100430586, 135011603(0.25mm)
200432814, 135011605(0.30mm)

0.10mm
0.15mm
0.20mm
0.25mm
0.30mm


 ROBOFIL series
