Understanding Wire EDM and Its Applications
Wire Electric Discharge Machining (EDM) is a crucial process in precision manufacturing. It utilizes electrical discharges to cut intricate shapes and features in conductive materials. This technology is particularly valuable for producing complex geometries that traditional machining cannot achieve. Industries such as aerospace and automotive benefit greatly from its applications, ensuring high accuracy and fine surface finishes.
Understanding the working principles of Wire EDM helps engineers and machinists optimize their processes. The technique relies on a thin wire electrode that moves through the workpiece, eroding material with every pulse of electricity. It's essential to properly fixture the workpiece to ensure stability during machining. Without effective fixturing, part movements can lead to dimensional inaccuracies and wasted resources. A thorough understanding of both the equipment and the materials being used can enhance outcomes significantly.
However, some challenges remain in adopting Wire EDM. The need for precise setup can lead to complexities that require experience and skill to navigate. Additionally, operators often face issues like wire wear and inconsistent cutting speeds. These challenges highlight the importance of continuous learning and adaptation in the field. Developing robust fixturing methods can alleviate many of these concerns, making the process more efficient and reliable.
Importance of Proper Fixturing in Wire EDM Processes

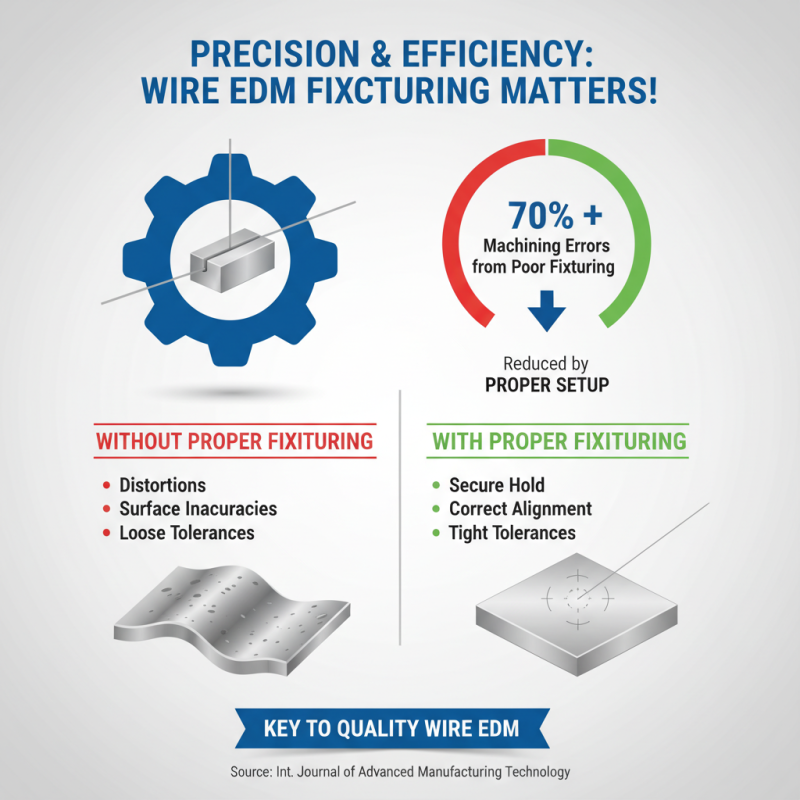

Proper fixturing in wire EDM processes is crucial for achieving precision and efficiency. A recent report from the International Journal of Advanced Manufacturing Technology highlights that more than 70% of machining errors stem from inadequate fixturing. This indicates that proper setup can significantly reduce these errors. In wire EDM, the workpiece must be held securely and aligned correctly to maintain tight tolerances. Without proper fixturing, the risk of distortions and surface inaccuracies increases.
In China, wire EDM fixturing techniques have gained attention for their role in enhancing production efficiency. Studies show that effective fixturing can improve cycle times by up to 30% while minimizing material waste. However, many machinists still overlook ergonomic and stability factors in their setups. Overlooking such aspects can lead to inconsistencies in the final product. Incorporating adjustable fixtures allows for adaptability across various projects, addressing the unique challenges presented by different materials and designs.
It’s essential to embrace a mindset of continuous improvement regarding wire EDM fixturing. Assessing existing setups and experimenting with innovative techniques can uncover new efficiencies. The aim is not only to refine the process but also to keep an open line for feedback within the team. In this way, the focus on effective fixturing remains dynamic, responding to the evolving challenges in manufacturing.
Key Principles of Effective Wire EDM Fixturing
Effective wire EDM fixturing is crucial for precision machining. Proper techniques enhance part accuracy and reduce setup times. One key principle is ensuring a stable setup. Use solid materials to minimize vibration and displacement during the cutting process. Every millimeter matters, and even slight movements can lead to significant errors.
Another vital aspect is the design of the fixture itself. Opt for simple yet robust geometries to hold the part securely. Complex fixtures can complicate setup and increase the risk of misalignment. An ideal fixture should allow easy access for wire threading. Remember to consider the wire path as well. This impacts not only efficiency but also the quality of the finished product.
Awareness of your fixture’s influence on wire feed rate is essential. Regular reflection on your setup process can lead to improvements. Analyze past projects, looking for inefficiencies. Identify areas where the design may have failed. A commitment to refining these processes can transform your approach. Continuous learning in
Wholesale Wire Edm Fixturing
leads to greater expertise. With experience, you can expect to achieve consistent, high-quality outcomes.
Materials and Tools for Wire EDM Fixturing
In Wire EDM (Electrical Discharge Machining), the choice of materials and tools for fixturing is critical. The main objective is precision. Using materials like aluminum or steel ensures stability during the cutting process. According to a report by the American Society of Mechanical Engineers,
around 30% of machining errors stem from improper fixturing. A sturdy fixture can significantly reduce these errors.
Tools also play a vital role. Utilizing specialized clamps and blocks enhances rigidity. A study published in the Journal of Manufacturing Processes revealed that optimizing fixturing can improve machining efficiency by up to 25%. However, while expensive tools may offer benefits, they are not always necessary. Many operators find success with affordable alternatives that meet basic requirements, proving that cost does not always correlate with quality.
Careful planning is essential. Designers often overlook the layout, affecting output quality. Adjusting fixture designs can lead to better accessibility and minimize setup times. Regular reviews and iterations of fixturing techniques can display missed opportunities for improvement. Emphasizing these materials and tools can lead to better performance, but the industry still faces challenges that call for innovation and adaptation.
Techniques for Securely Mounting Workpieces in Wire EDM
In wire EDM (Electrical Discharge Machining), securely mounting workpieces is crucial for precision and efficiency. Proper fixturing techniques play a key role in achieving high-quality results. According to a study from the American Society of Mechanical Engineers (ASME), nearly 70% of machining errors can be traced back to inadequate fixturing. This statistic highlights the importance of careful workpiece placement and stabilization.
One effective technique is utilizing custom fixtures tailored for specific geometries. These fixtures should be rigid and minimize movement. A report by the National Institute of Standards and Technology (NIST) found that workpieces held within custom fixtures experience a 25% increase in cut accuracy compared to standard methods. Additionally, materials used for fixtures, such as aluminum or composites, should be lightweight yet strong, allowing easy adjustments without compromising stability.
It's essential to continuously assess your fixturing method. Many practitioners overlook the importance of regular checks for wear and misalignment. This oversight can lead to costly rework. An annual review of fixturing techniques not only enhances process reliability but can also yield incremental improvements in production efficiency. By creating a culture of meticulousness around fixturing, manufacturers can better adapt to the ever-evolving demands of wire EDM technology.
Top 5 Tips for Efficient Wire EDM Fixturing Techniques
| Tip |
Description |
Benefits |
Considerations |
| 1. Use Custom Fixtures |
Design and implement fixtures tailored to specific workpieces for optimal support. |
Improved part stability and precision cutting. |
Higher initial setup cost. |
| 2. Properly Align Workpieces |
Ensure that the workpiece is aligned in the correct position before starting the EDM process. |
Reduces the risk of miscuts and rework. |
Requires careful measurement and adjustments. |
| 3. Use Magnetic Tables |
Employ magnetic fixturing for quick and secure mounting of ferromagnetic workpieces. |
Speeds up setup time and enhances accessibility. |
Limited to magnetic materials. |
| 4. Implement Repeatability |
Create a system for consistent setup across different jobs. |
Facilitates easier production of identical parts. |
Requires training and standardization. |
| 5. Regular Maintenance |
Keep fixtures and machines in optimal condition through routine checks and servicing. |
Ensures consistent performance and reduces failures. |
Requires time investment and planning. |
Common Mistakes in Wire EDM Fixturing to Avoid
Wire EDM fixturing is a critical aspect of the machining process. Many professionals overlook key mistakes that can lead to inefficiencies. One such common error is not ensuring proper alignment of the workpiece. Misalignment can cause inconsistent cuts and increase cycle times. According to industry reports, proper alignment can enhance cut accuracy by up to 30%.
Another frequent oversight is inadequate support during machining. A workpiece that is not securely fastened can vibrate. This vibration leads to decreased precision and increases wear on the wire electrode. Studies have shown that effective support can reduce machining errors by nearly 25%. Additionally, using low-quality fixtures may seem economical but often results in increased setup times and compromised quality.
Quality must not be sacrificed for cost. High-Quality Wire Edm Fixturing is vital for achieving optimal results. Gaps or inappropriate fixtures can create frustrating setbacks. Professionals must critically evaluate their fixturing techniques. Reflecting on past setups and identifying recurring challenges can lead to more efficient processes. Avoiding these common mistakes can significantly improve overall productivity.
Optimizing Fixturing Designs for Efficiency and Accuracy
In wire EDM (Electrical Discharge Machining), proper fixturing is crucial for both efficiency and accuracy. Effective fixturing designs significantly impact machining outcomes, reducing downtime and improving precision. Start by considering the use of modular fixtures. They offer versatility and flexibility, adapting to various parts with minimal adjustments. This adaptability can reduce setup time significantly.
Another tip is to ensure that the workpiece is adequately supported. Insufficient support can lead to vibrations and inaccuracies. Using a solid foundation can minimize these issues. Pay attention to the positioning of the electrodes; optimal placement can prevent wire breakage and improve cut quality. Investing time in layout planning pays off in the long run.
Another aspect to reflect on is the choice of materials used in the fixturing process. Some materials can wear down quickly, affecting longevity and precision. Focus on durability when selecting materials. Look for reliable Wire Edm Fixturing Suppliers who understand the need for high-quality components. Ensure your supplier offers solutions that enhance both efficiency and accuracy. Remember, every choice impacts the overall machining performance.
Wire EDM Fixturing Techniques Efficiency
Optimizing EDM Performance: The Role of Power Feed Contact S010 Conductivity Piece
In the pursuit of optimizing Electric Discharge Machining (EDM) performance, the conductivity of the power feed contact piece plays a pivotal role. A vital component in the EDM setup, the conductivity piece ensures efficient electrical transfer, which is essential for achieving precise machining. When the conductivity of the contact piece is optimized, operators can see a significant enhancement in material removal rates, leading to improved overall productivity.
The effectiveness of the EDM process heavily depends on the integrity and conductivity of the power feed contact. High conductivity materials not only reduce energy loss but also minimize the thermal build-up during the discharge process. This can help prolong the lifespan of both the contact piece and the electrode, resulting in lower maintenance costs and higher operational efficiency. When selecting materials or designs for the conductivity piece, factors such as thermal conductivity, hardness, and wear resistance should be critically evaluated to maximize performance in demanding machining environments.
Incorporating advanced materials into the design of power feed contact pieces can lead to substantial improvements in EDM operations. Enhanced conductivity not only allows for more stable arcs during machining but also contributes to a smoother surface finish on the workpiece. As the industry evolves, continuing to focus on optimizing these components will be essential for manufacturers looking to maintain a competitive edge through increased precision and reliability in their EDM processes.
