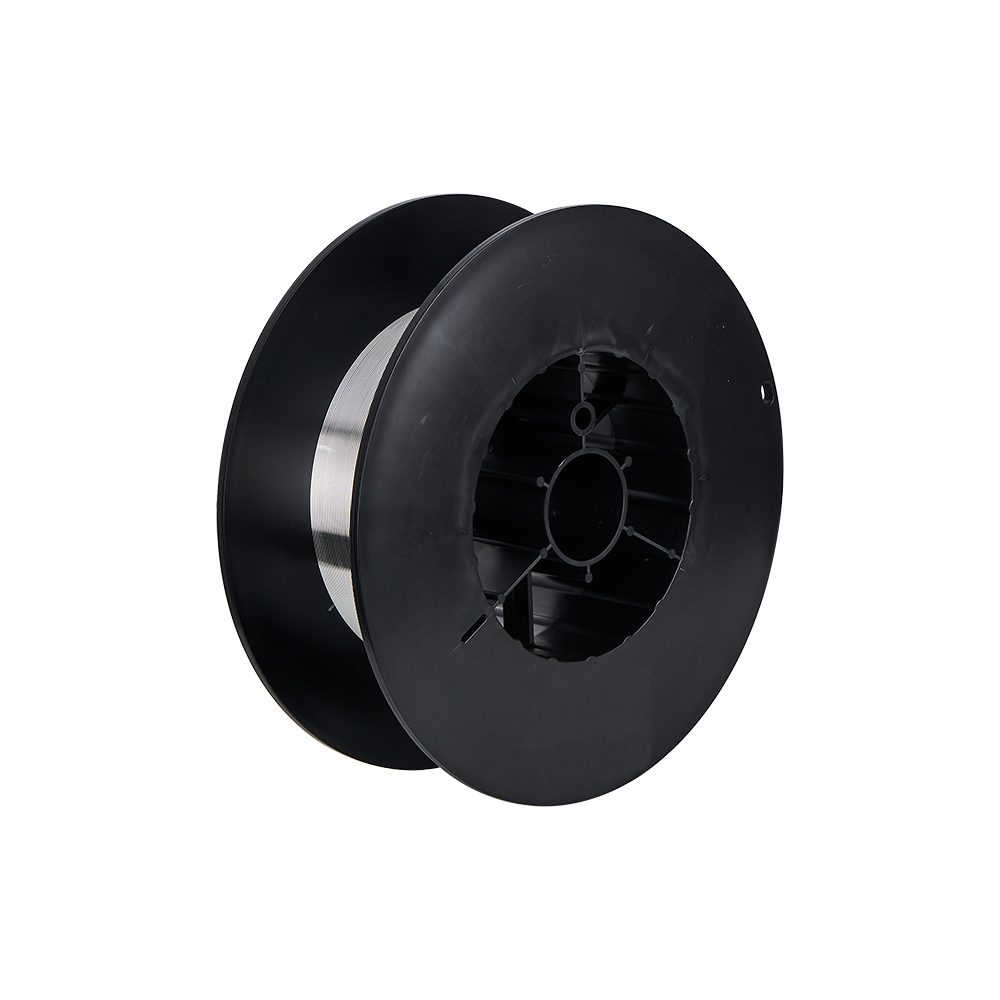

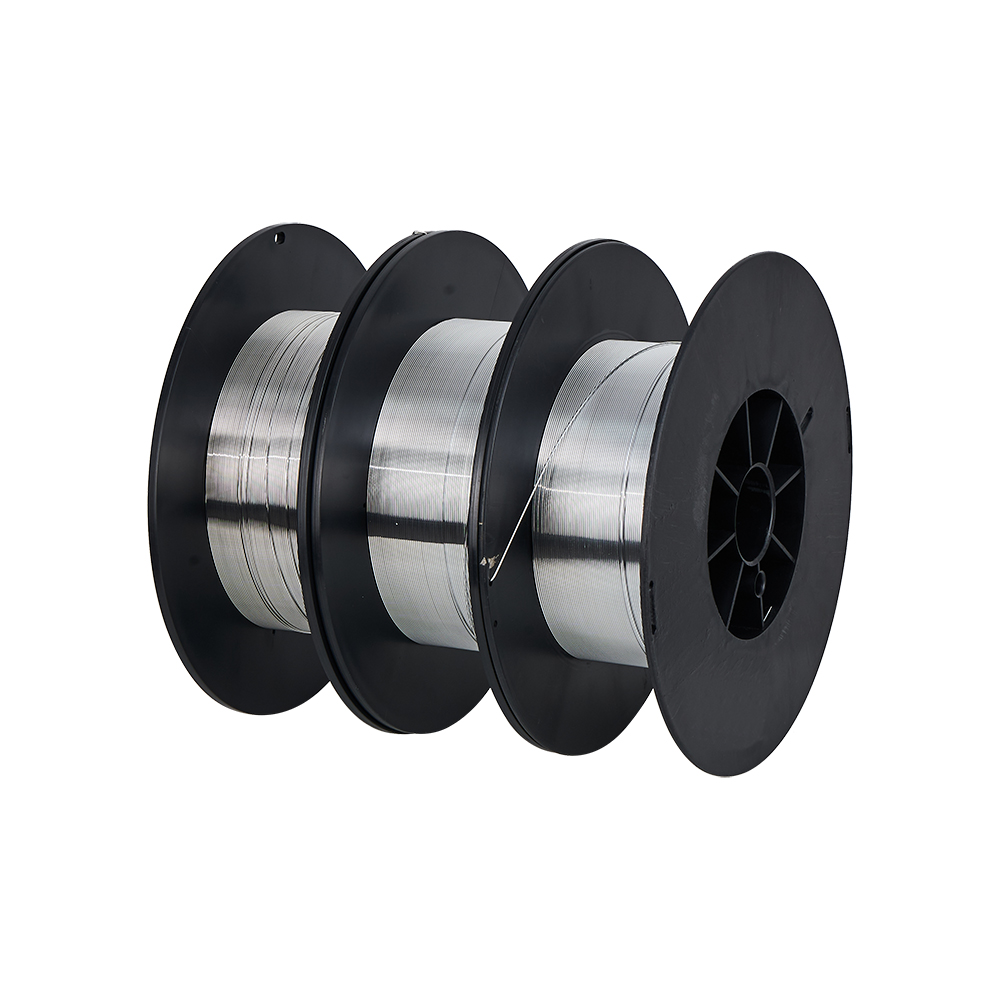

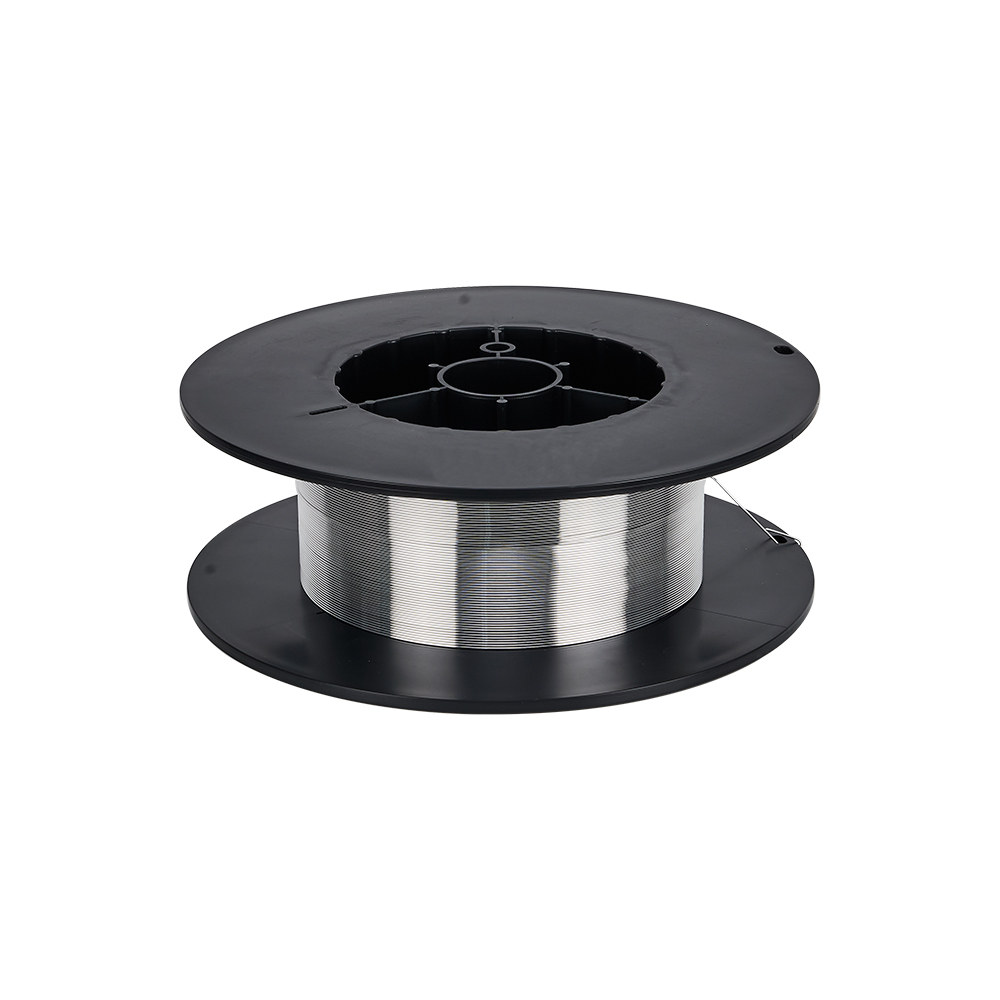

5554 Aluminium Welding Wire

LEMHUNTER Aluminium Wire 5554 contains 2.4~3.0% magnesium, 0.5~1.0% manganese, and added Cr, Ti and other alloying elements. The dimensional stability is good, and its welded joints still maintain good stress corrosion resistance at a certain temperature.

get Best Price

product details

description2

Product Description

Features

● All-position MIG wire.

● Good matching of welding consumables.

● X-ray inspection to ensure the quality of the weld.

● High-quality wire surface ensures smooth wire feeding and stable arc.

Typical applications

● Applications in the aluminium tanker industry.

Protective Gases

● 100% Ar

● Ar/He mixture

Standard

● AI 5554(1S0 18273)

● ER 5554(AWS A5.10)

Product Application

Shipbuilding

Welding of hull structure: In shipbuilding, 5554 aluminum welding wire is widely used in the welding of hull structure. Due to the long-term operation of the ship in the marine environment, need to withstand the corrosion of seawater and the impact of the waves, so the corrosion resistance and strength of the welded structure of the higher requirements. 5554 aluminum wire's excellent performance can meet these requirements, to ensure that the hull of the structure of the safe and reliable.

Marine equipment welding: various equipment on the ship, such as engines, propellers, pipelines, etc., also often use 5554 aluminum welding wire for welding. These equipments are affected by vibration, high temperature, high pressure and other factors during operation, and need to have good mechanical properties and corrosion resistance. 5554 Aluminum Welding Wires can provide a reliable solution for welding of marine equipments.

Automotive

Automobile body welding: In automobile manufacturing, the application of aluminum alloy body is more and more extensive.5554 Aluminum welding wire can be used to weld various parts of the automobile body, such as doors, hoods, trunks, etc. The aluminum welding wire can be used to weld various parts of the automobile body. The welded body structure has high strength and light weight, which can improve the fuel economy and performance of the car.

Welding of automotive parts: Many parts of automobiles are also made of aluminum alloy, such as radiators, fuel tanks, exhaust pipes, etc. 5554 aluminum welding wire can meet the welding requirements of these parts to ensure their reliability and safety in the process of automobile operation.

PRODUCT SPECIFICATIONS

Chemical composition of welding wire

SKU

Ga,V,Sc

Others

IS018273

AI 5554

0.25

0.40

0.10

0.05~1.0

2.4~3.0

0.05~0.20

0.25

0.05~0.20

Remainder of other metals

0.0003

Each

Total

0.05

0.15

Mechanical properties of molten metal

Specified plastic elongation strength Rpo.2	Tensile strength Rm MPa	Elongation at break A%
≥100	≥215	≥18

Physical properties of materials

Melting point (°C)	Densities (g/cm3)
6602-648	2.68

Packaging form

Packaging	Wire Diameter (mm)	Product Net Medium
Plate Mounted	0.8\|1.0\| 1.2\| 1.6	6k6-9kg
Barrel Welding Wire	1.0\|1.2 \|1.6	40kg-100kg
Straight (1000mm)	1.6\|2.4\|3.2\|4.0\|5.0\|6.0	5kg-10kg

Recommended Matching Data For Aluminium Welding

Original material	356.0,A356.0, 357.0,A357.0, 359.0,443.0, A 444.0	354.0, 1355.0	7005	6005,6061, AIcIad 6061, 6063,6351	5454	5154, 5254	5086, 514.0, 535.0	5083, 5456	5052, 5652	5005, 5050	3004, AIcIad 3004	2219, A201.0	1060, 1100,3003, AIcIad 3003
1060, 1100, 3003, AIcIad 3003	4043	4145	5356	4043	4043	4043	5356	5356	4043	4043	4043	4145	1100
2219,A201.0	4145	4145	4145	4145	4043	NR	NR	NR	4043	4145	4145	2319
3004 Alclad 3004	4043	4145	5356	5356	5356	5356	5356	5356	4043	4043	4043
5005, 5050	4043	4145	5356	4043, 5356	5356	5356	5356	5356	4043, 5356	4043, 5356
5052, 5652	4043	4043	5356	4043, 5356	5356	5356	5356	5356	5356
50,835,456	5356	NR	5356	5356	5356	5356	5356	5356, 5183
5086,514.0, 535.0	5356	NR	5356	5356	5356	5356	5356
5154, 5254	4043	NR	5356	5356	5356	5356
5454	4043	4043	5356	5356	5554
6005,6061, Alclad 6061, 6063,6351	4043	4145	5356	4043, 5356
7005	4043	4145	5356
354.0, C355.0	4145	4145
356.0, A356.0, 357.0, A357.0, 359.0, 443.0, A444.0	4043

Overall product quality characteristics

1、 High melting efficiency, high X-Ray film qualification rate

2、 Stable wire feeding, high production efficiency

3、 Omni-directional system and product certification to meet the needs of global customers, IS09001, IATF16949, ISO14001ISO45001 system certification and CE, DB, VDTUV, classification society product certification.

Other notes

Suitable for MIG/TIG/laser/plasma welding methods

The LEMHUNTER aluminium welding wire line has several uses, which is why prominent firms in the fields of new energy vehicles, rail transport, cycling, and aerospace engineering rely on LEMHUNTER as a vital component of revolutionary welding technology.
