5356 Aluminium Welding Wire

LEMHUNTER Aluminium Wire 5356 Magnesium Alloy Aluminium Welding Wire is a versatile general purpose welding consumable suitable for welding or overlaying cast and forged aluminium alloys with 5% magnesium, high strength, good malleability and good corrosion resistance. Provides good colour matching for anodised welds.

get Best Price

product details

description2

Product Description

Features

● All-position MIG wire.

● High-quality wire surface to ensure smooth wire feeding and Stable arc;

● X-ray inspection to ensure the quality of weld; -Strictly controlled chemical composition of the wire.

● Strictly controlled chemical composition of the wire.

Typical applications

● The most widely used grade of aluminium wire.

● Automotive components.

● Marine industry; Railway industry; Aluminium alloy structural parts.

● Aluminium alloy structural parts.

Protective Gases

● 100% Ar

● Ar/He mixture

Standard

● AI 5356(1S0 18273)

● ER 5656(AWS A5.10)

PRODUCT SPECIFICATIONS

Chemical composition of welding wire

SKU

Ga,V,Sc

Others

IS018273

AI 5356

0.25

0.4

0.1

0.05~0.20

4.5~5.5

0.05~0.20

0.10

0.06~0.20

Remainder of other metals

0.0003

Each

Total

0.05

0.15

Mechanical properties of molten metal

Specified plastic elongation strength Rpo.2	Tensile strength Rm MPa	Elongation at break A%
≥120	≥250	≥18

Physical properties of materials

Melting point (°C)	Densities (g/cm3)
575-633	2.64

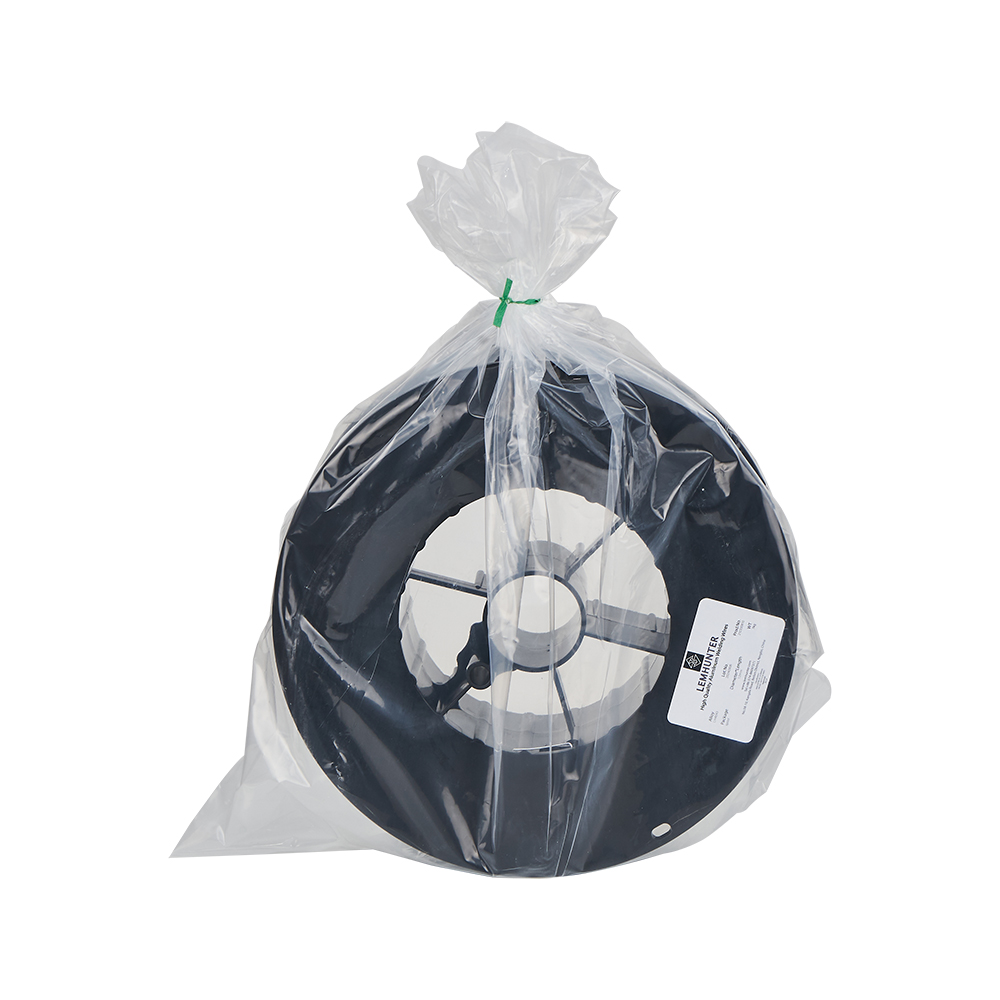

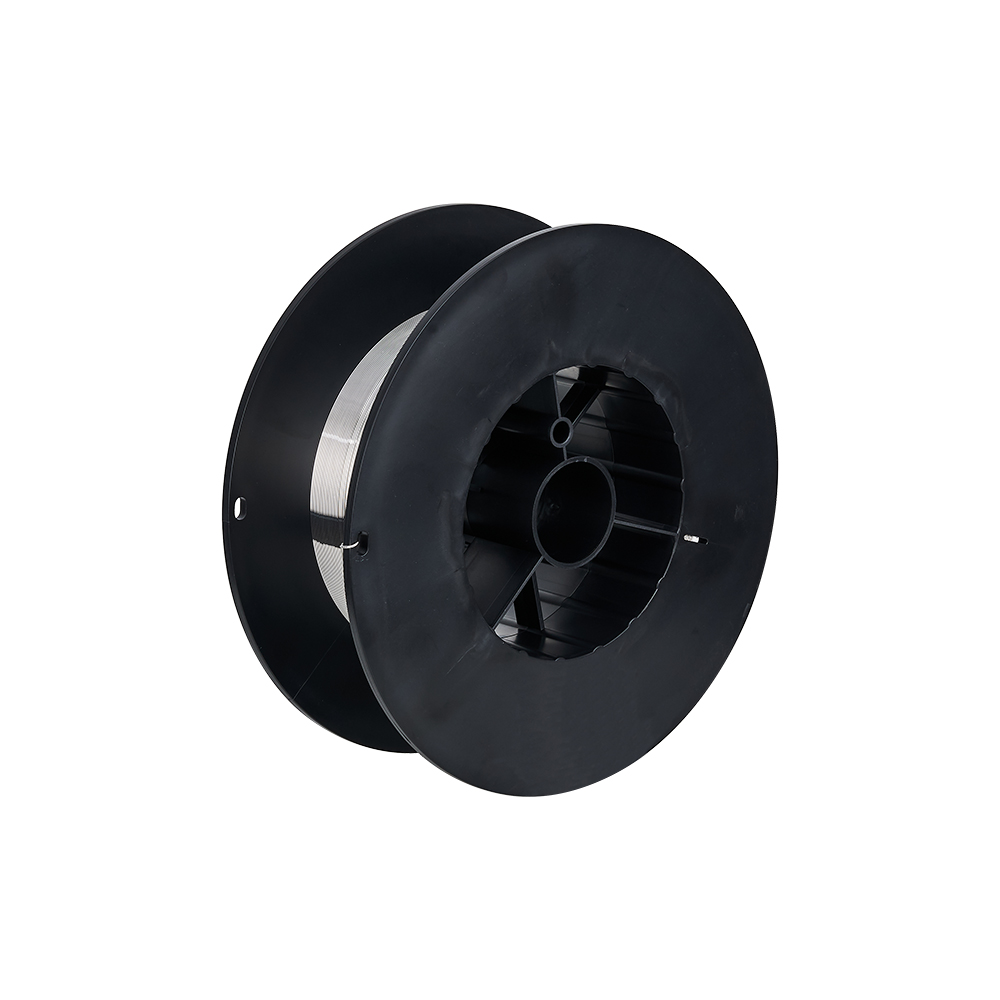

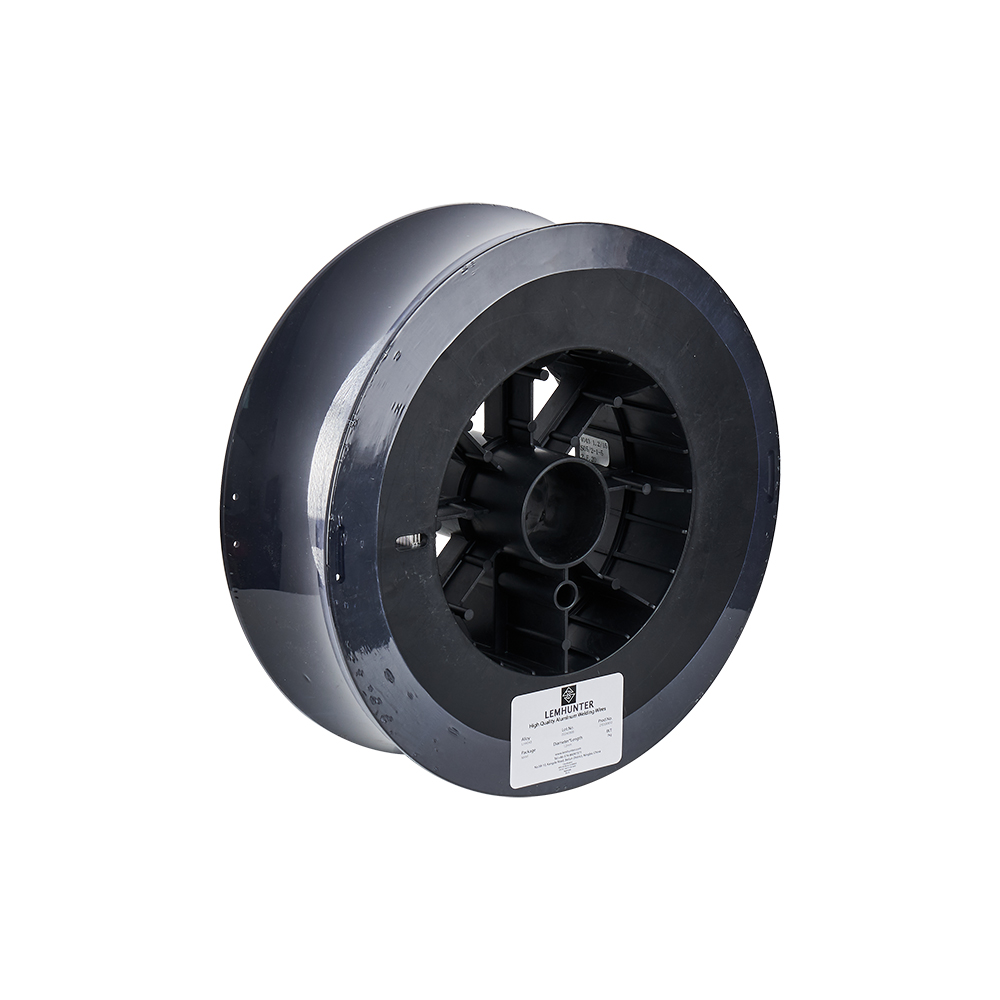

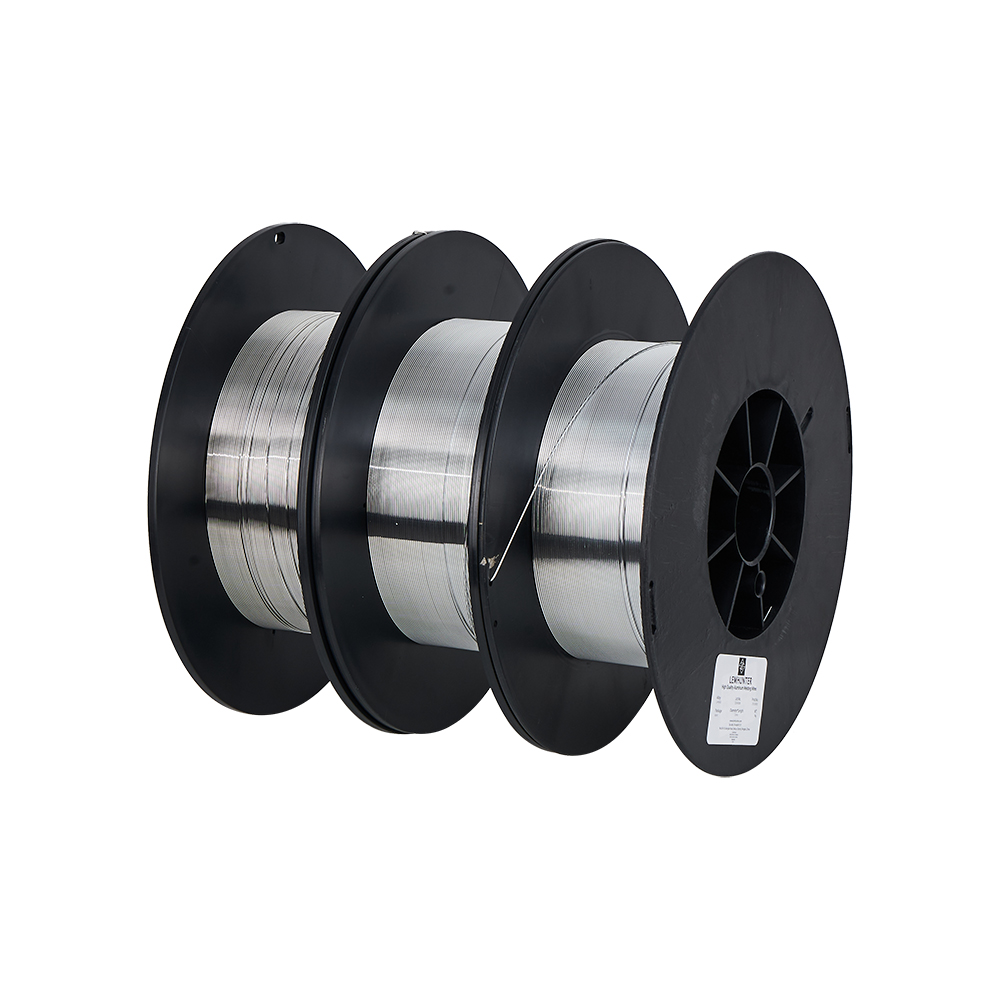

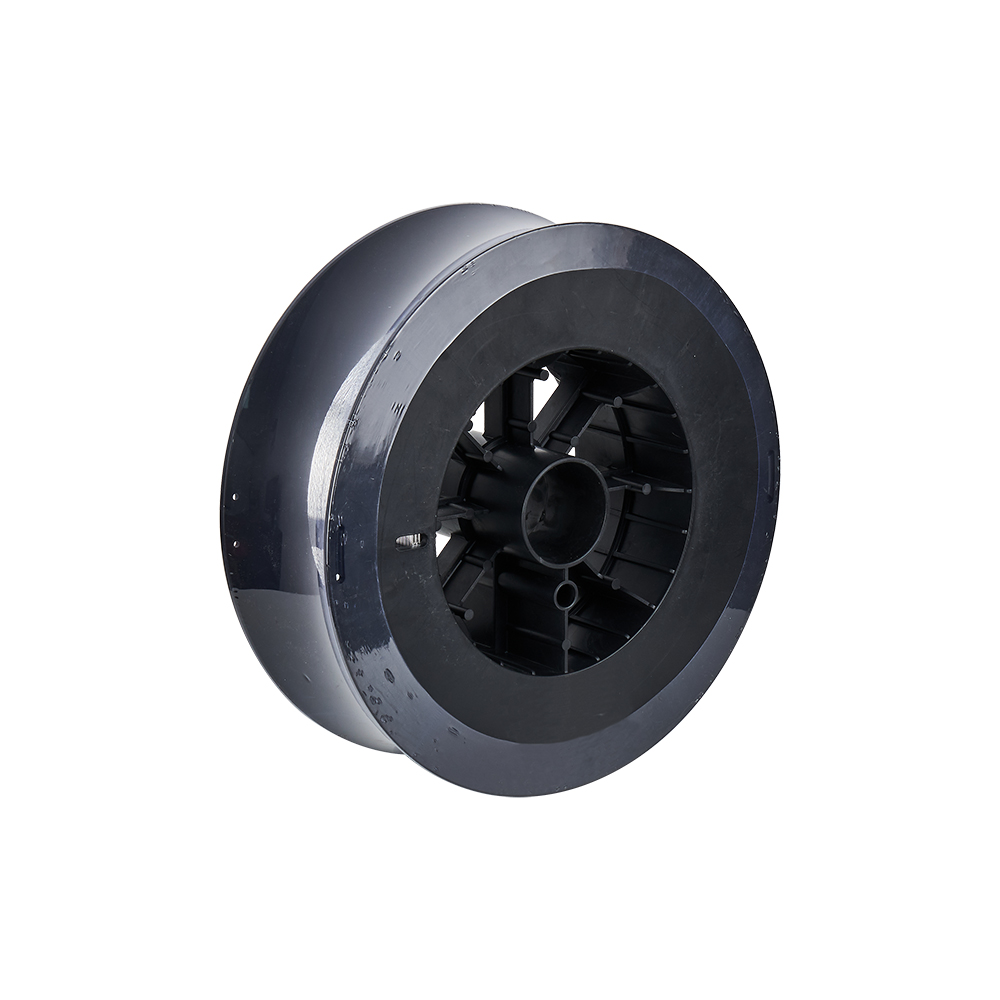

Packaging form

Packaging	Wire Diameter (mm)	Product Net Medium
Plate Mounted	0.8\|1.0\| 1.2\| 1.6	6k6-9kg
Barrel Welding Wire	1.0\|1.2 \|1.6	40kg-100kg
Straight (1000mm)	1.6\|2.4\|3.2\|4.0\|5.0\|6.0	5kg-10kg

Recommended Matching Data For Aluminium Welding

Original material	356.0,A356.0, 357.0,A357.0, 359.0,443.0, A 444.0	354.0, 1355.0	7005	6005,6061, AIcIad 6061, 6063,6351	5454	5154, 5254	5086, 514.0, 535.0	5083, 5456	5052, 5652	5005, 5050	3004, AIcIad 3004	2219, A201.0	1060, 1100,3003, AIcIad 3003
1060, 1100, 3003, AIcIad 3003	4043	4145	5356	4043	4043	4043	5356	5356	4043	4043	4043	4145	1100
2219,A201.0	4145	4145	4145	4145	4043	NR	NR	NR	4043	4145	4145	2319
3004 Alclad 3004	4043	4145	5356	5356	5356	5356	5356	5356	4043	4043	4043
5005, 5050	4043	4145	5356	4043, 5356	5356	5356	5356	5356	4043, 5356	4043, 5356
5052, 5652	4043	4043	5356	4043, 5356	5356	5356	5356	5356	5356
50,835,456	5356	NR	5356	5356	5356	5356	5356	5356, 5183
5086,514.0, 535.0	5356	NR	5356	5356	5356	5356	5356
5154, 5254	4043	NR	5356	5356	5356	5356
5454	4043	4043	5356	5356	5554
6005,6061, Alclad 6061, 6063,6351	4043	4145	5356	4043, 5356
7005	4043	4145	5356
354.0, C355.0	4145	4145
356.0, A356.0, 357.0, A357.0, 359.0, 443.0, A444.0	4043

Overall product quality characteristics

1、 High melting efficiency, high X-Ray film qualification rate

2、 Stable wire feeding, high production efficiency

3、 Omni-directional system and product certification to meet the needs of global customers, IS09001, IATF16949, ISO14001ISO45001 system certification and CE, DB, VDTUV, classification society product certification.

Other notes

Suitable for MIG/TIG/laser/plasma welding methods

The LEMHUNTER aluminium welding wire range has a wide range of applications, which is why renowned companies in the fields of new energy vehicles, rail transport, cycling and aerospace engineering use LEMHUNTER as an essential component of innovative welding technology.
