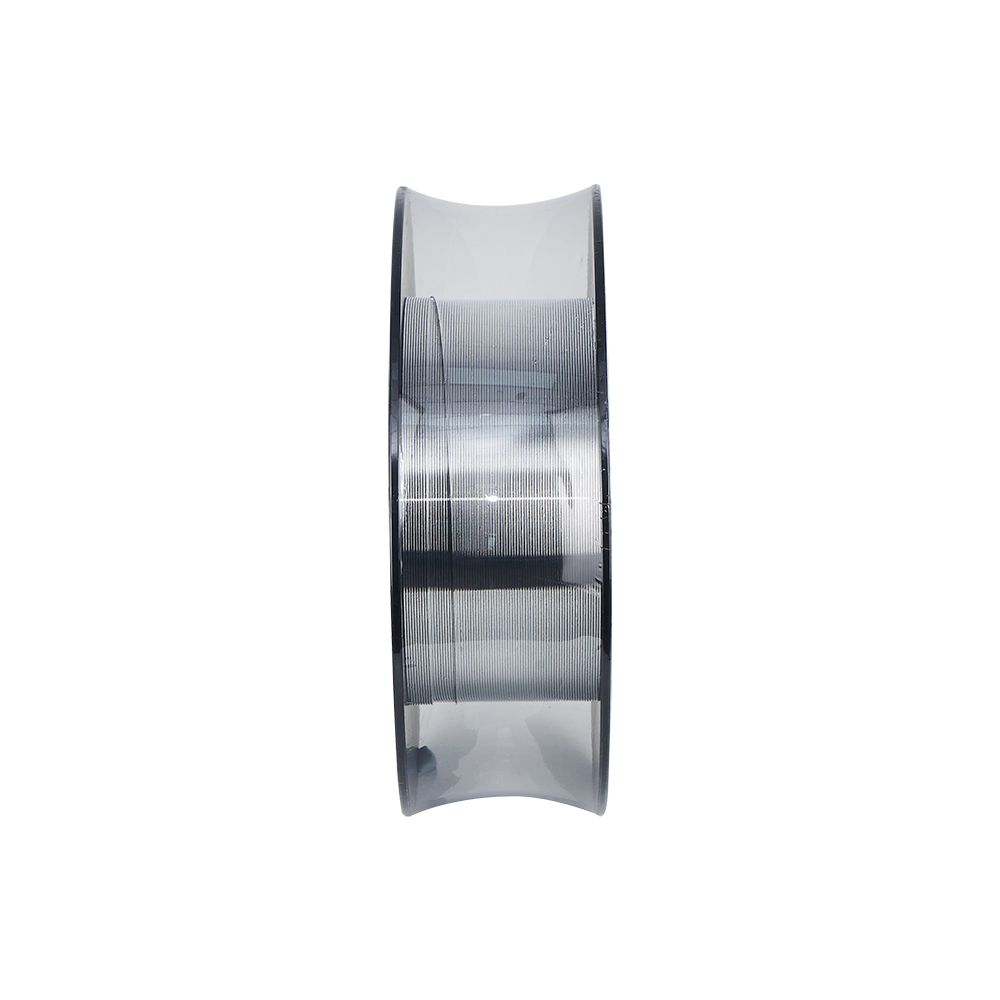

5087 Aluminium Welding Wire

LEMHUNTER Aluminium Wire 5087 is a silicon-alloyed aluminium wire suitable for brazing, featuring a lower melting point and greater fluidity. It can also be used for fusion welding. The high silicon content minimizes thermal cracking and enhances shear strength in fillet welds.

get Best Price

product details

description2

Product Description

Features

● All-position MlG wire.

● Higher mechanical properties of the base metal; Strictly controlled wire chemistry.

● Strict hydrogen content control.

● Qualified by X-ray inspection to ensure the quality of weld seam.

Typical applications

● Applied to the high speed rail industry

● Protective Gases

● 100% Ar

● Ar/He mixture

Standard

● AI 5087(1S0 18273)

● ER 5087(AWS A5.10)

Product Features

Excellent mechanical properties

High strength: 5087 aluminum wire has a high tensile strength, to meet the high strength requirements of the welded structure of the application scenario. In shipbuilding, pressure vessels and other fields, the welded structure needs to withstand large loads and pressures, 5087 aluminum welding wire can ensure that the strength of the welded joints match the base material to ensure the safety and reliability of the structure.

Good toughness: The welded joints of this wire have excellent toughness and can withstand a certain degree of shock and vibration. In the transportation, machinery manufacturing and other industries, the welded structure may be subject to dynamic loads, 5087 aluminum welding wire good toughness can effectively prevent brittle fracture of welded joints, improve the service life of the structure.

Excellent corrosion resistance

Seawater corrosion resistance: 5087 aluminum wire contains an appropriate amount of magnesium, so that it has good corrosion resistance in seawater. For marine engineering, shipbuilding and other fields of aluminum structure welding, can effectively resist the erosion of seawater, extend the service life of the structure. For example, in the construction of offshore oil platforms, the structure welded with 5087 aluminum welding wire can operate stably for a long time under the harsh marine environment.

Atmospheric corrosion resistance: The wire also shows excellent corrosion resistance in the atmosphere. In the welding of outdoor buildings, bridges and other structures, it can withstand the wind, rain, ultraviolet radiation and other natural factors, maintaining the appearance and performance of welded joints stable.

PRODUCT SPECIFICATIONS

Chemical composition of welding wire

SKU

Ga,V,Sc

Others

IS018273

AI 5087

0.25

0.4

0.05

0.7~1.1

4.5~5.2

0.05~0.25

0.10

0.15

0.1~0.2

Remainder of other metals

0.0003

Each

Total

0.05

0.15

Mechanical properties of molten metal

Specified plastic elongation strength Rpo.2	Tensile strength Rm MPa	Elongation at break A%
≥140	≥285	≥18

Physical properties of materials

Melting point (°C)	Densities (g/cm3)
574-638	2.66

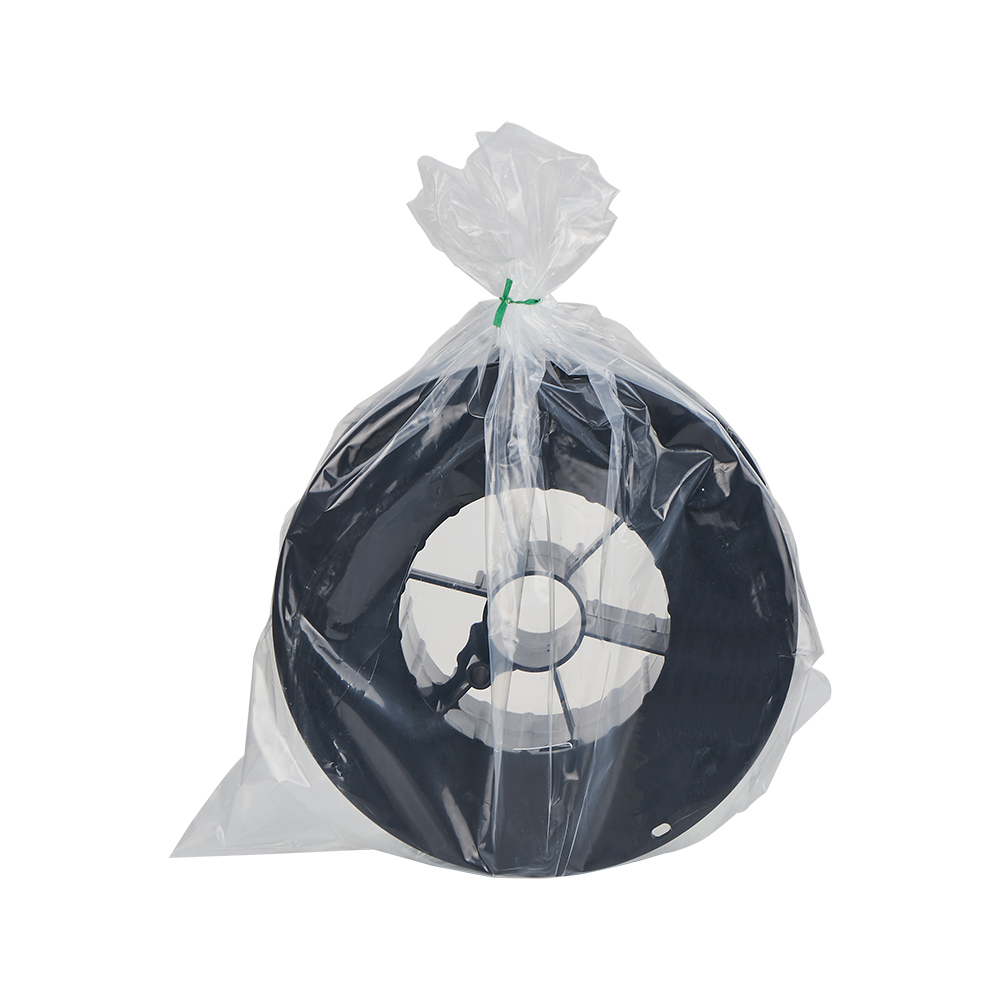

Packaging form

Packaging	Wire Diameter (mm)	Product Net Medium
Plate Mounted	0.8\|1.0\| 1.2\| 1.6	6k6-9kg
Barrel Welding Wire	1.0\|1.2 \|1.6	40kg-100kg
Straight (1000mm)	1.6\|2.4\|3.2\|4.0\|5.0\|6.0	5kg-10kg

Recommended Matching Data For Aluminium Welding

Original material	356.0,A356.0, 357.0,A357.0, 359.0,443.0, A 444.0	354.0, 1355.0	7005	6005,6061, AIcIad 6061, 6063,6351	5454	5154, 5254	5086, 514.0, 535.0	5083, 5456	5052, 5652	5005, 5050	3004, AIcIad 3004	2219, A201.0	1060, 1100,3003, AIcIad 3003
1060, 1100, 3003, AIcIad 3003	4043	4145	5356	4043	4043	4043	5356	5356	4043	4043	4043	4145	1100
2219,A201.0	4145	4145	4145	4145	4043	NR	NR	NR	4043	4145	4145	2319
3004 Alclad 3004	4043	4145	5356	5356	5356	5356	5356	5356	4043	4043	4043
5005, 5050	4043	4145	5356	4043, 5356	5356	5356	5356	5356	4043, 5356	4043, 5356
5052, 5652	4043	4043	5356	4043, 5356	5356	5356	5356	5356	5356
50,835,456	5356	NR	5356	5356	5356	5356	5356	5356, 5183
5086,514.0, 535.0	5356	NR	5356	5356	5356	5356	5356
5154, 5254	4043	NR	5356	5356	5356	5356
5454	4043	4043	5356	5356	5554
6005,6061, Alclad 6061, 6063,6351	4043	4145	5356	4043, 5356
7005	4043	4145	5356
354.0, C355.0	4145	4145
356.0, A356.0, 357.0, A357.0, 359.0, 443.0, A444.0	4043

Overall product quality characteristics

1、 High melting efficiency, high X-Ray film qualification rate

2、 Stable wire feeding, high production efficiency

3、 Omni-directional system and product certification to meet the needs of global customers, IS09001, IATF16949, ISO14001ISO45001 system certification and CE, DB, VDTUV, classification society product certification.

Other notes

Suitable for MIG/TIG/laser/plasma welding methods

The LEMHUNTER aluminium welding wire line has several uses, which is why prominent firms in the fields of new energy vehicles, rail transport, cycling, and aerospace engineering rely on LEMHUNTER as a vital component of revolutionary welding technology.
